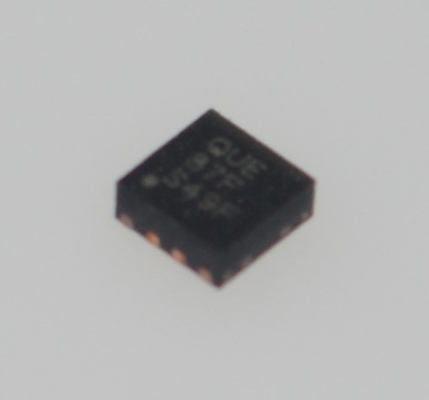

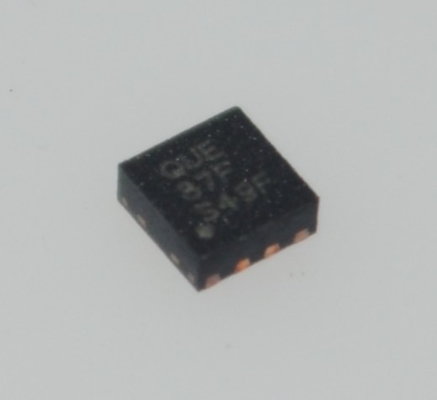

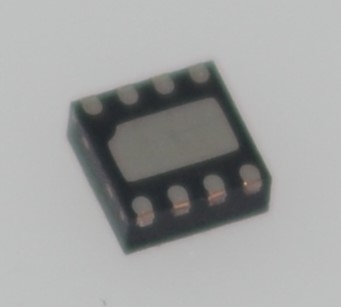

TPS62170DSGR Step-Down Converter 3-17V Input 1.2A Output Up to 95% Efficiency 1.8V to 6V Adjustable Output 17μA Low Quiescent Current Power Save Mode 100% Duty Cycle Small 2.0x2.0mm WSON Package

TPS62170DSGR Step-Down Converter 3-17V Input 1.2A Output Up to 95% Efficiency 1.8V to 6V Adjustable Output 17μA Low Quiescent Current Power Save Mode 100% Duty Cycle Small 2.0x2.0mm WSON Package

Features

• DCS-Control™Topology

• InputVoltageRangefrom3Vto17V

• Upto500-mAOutputCurrent

• AdjustableOutputVoltagefrom0.9Vto6V

• FixedOutputVoltageVersions

• SeamlessPowerSaveModeTransition

• Typically17-µAQuiescentCurrent

• PowerGoodOutput

• 100%DutyCycleMode

• ShortCircuitProtection

• OverTemperatureProtection

• PintoPinCompatiblewithTPS62160and TPS62125

• Availableina2-mm×2-mm8-PinWSON Package

Applications

• Standard12-VRailSupplies

• POLSupplyfromSingleorMultipleLi-IonBattery

• LDOReplacement

• EmbeddedSystems

• DigitalStillCamera,Video

• MobilePCs,Tablet-PCs,Modems

Description

The TPS6217x device family are easy to use synchronousstep-downDC-DCconvertersoptimized for applications with high power density. A high switchingfrequencyof typically2.25MHzallows the use of small inductors and provides fast transient responseaswellashighoutputvoltageaccuracyby utilizationof theDCS-Control™topology.

With itswideoperating input voltagerangeof3Vto 17 V, the devices are ideally suited for systems poweredfromeitheraLi-Ionorotherbatteryaswell asfrom12-Vintermediatepower rails. Itsupportsup to0.5-Acontinuousoutputcurrentatoutputvoltages between0.9Vand6V(with100%dutycyclemode).

Powersequencingisalsopossiblebyconfiguringthe enableandopen-drainpowergoodpins.

In power savemode, the devices showquiescent currentofabout17μAfromVIN.Powersavemode, enteredautomaticallyandseamlessly if the load is small,maintainshighefficiencyover theentire load range. In shutdownmode, thedevice is turnedoff andshutdowncurrentconsumptionislessthan2μA.

Thedevice, available inadjustableand fixedoutput voltageversions, ispackaged ina2-mm×2-mm8 pinWSONpackage(DSG).

INFORMATION

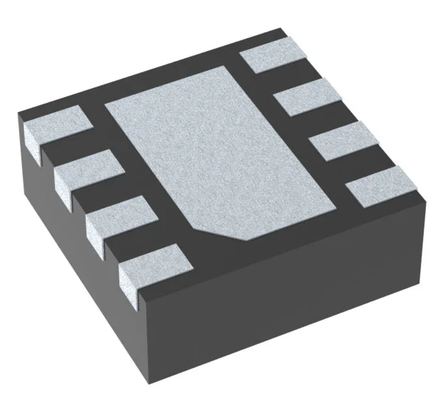

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
