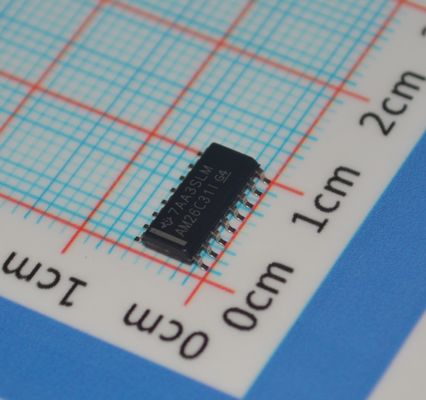

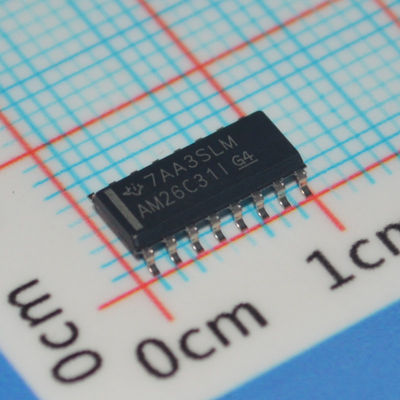

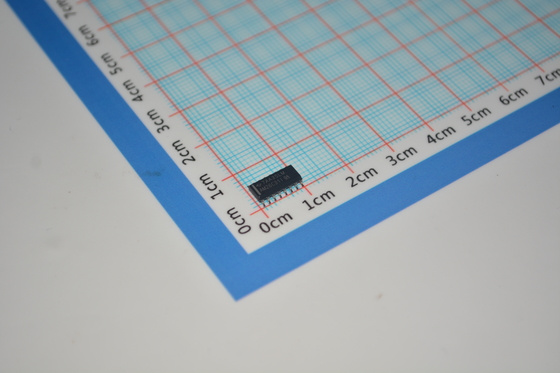

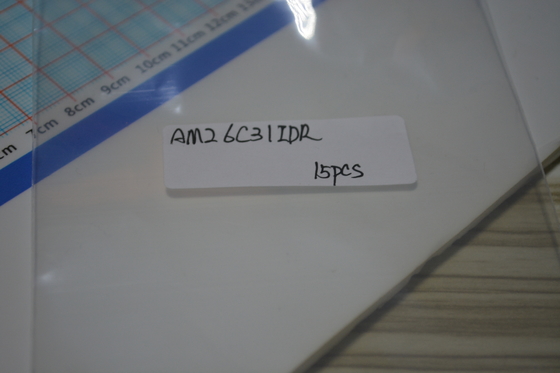

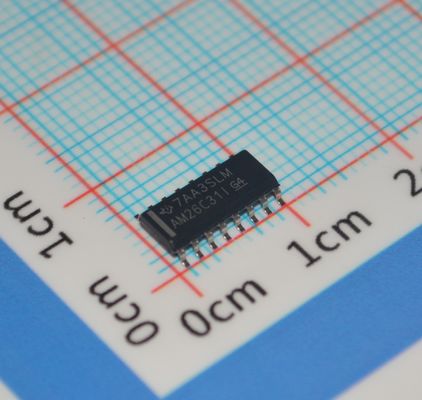

AM26C31IDR High-Speed 32Mbps RS-422/RS-485 Differential Driver 4 Channels ±15kV ESD Protection Wide 3V to 5.5V Supply -40°C to +125°C Low Power & Industrial Grade

AM26C31IDR High-Speed 32Mbps RS-422/RS-485 Differential Driver 4 Channels ±15kV ESD Protection Wide 3V to 5.5V Supply -40°C to +125°C Low Power & Industrial Grade

Features

• Meets or exceeds the requirements of TIA/ EIA-422-B and ITU recommendation V.11

• Low power, ICC = 100μA typical

• Operates from a single 5V supply

• High speed, tPLH = tPHL = 7ns typical

• Low pulse distortion, tsk(p) = 0.5ns typical

• High output impedance in power-off conditions

• Improved replacement for AM26LS31 device

• Available in Q-temp automotive– High-reliability automotive applications– Configuration control and print support– Qualification to automotive standards

• On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.

Applications

• Chemical and gas sensors

• Field transmitters: temperature sensors and pressure sensors

• Military: radars and sonars

• Motor control: brushless DC and brushed DC

• Military and avionics imaging

• Temperature sensors and controllers using modbus

Description

The AM26C31 device is a differential line driver with complementary outputs, designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT). The 3-state outputs have high-current capability for driving balanced lines, such as twisted pair or parallel-wire transmission lines, and they provide the high-impedance state in the power-off condition. The enable functions are common to all four drivers and offer the choice of an active-high (G) or active-low ( G) enable input. BiCMOS circuitry reduces power consumption without sacrificing speed.

The AM26C31C device is characterized for operation from 0°C to 70°C, the AM26C31I device is characterized for operation from –40°C to +85°C, the AM26C31Q device is characterized for operation over the automotive temperature range of –40°C to +125°C, and the AM26C31M device is characterized for operation over the full military temperature range of –55°C to +125°C.

INFORMATION

Drawin

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
