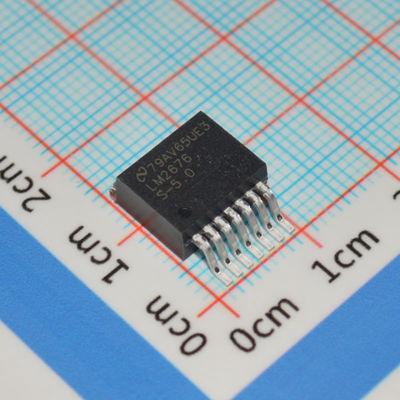

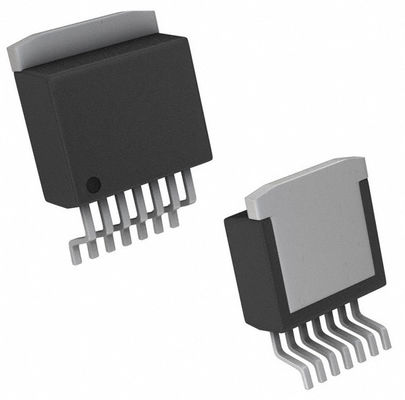

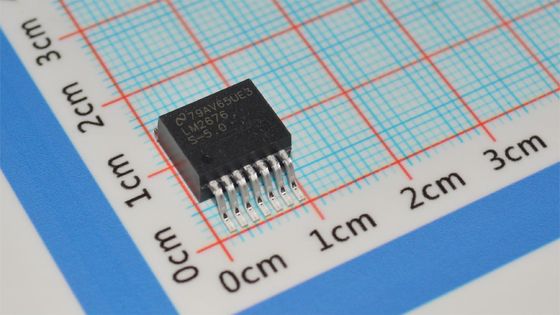

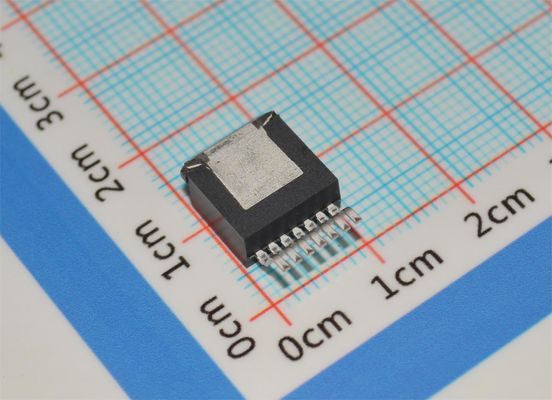

LM2676SX-5.0 5V 3A Buck Converter 8-40V Input 90% Efficiency TO-263 260kHz -40°C to +125°C

LM2676SX-5.0 5V 3A Buck Converter 8-40V Input 90% Efficiency TO-263 260kHz -40°C to +125°C
LM2676SX-5.0 5V 3A Buck Converter 8-40V Input 90% Efficiency TO-263 260kHz -40°C to +125°C LM2676SX-5.0 5V 3A Buck Converter 8-40V Input 90% Efficiency TO-263 260kHz -40°C to +125°C LM2676SX-5.0 5V 3A Buck Converter 8-40V Input 90% Efficiency TO-263 260kHz -40°C to +125°C LM2676SX-5.0 5V 3A Buck Converter 8-40V Input 90% Efficiency TO-263 260kHz -40°C to +125°C

Grande immagine :  LM2676SX-5.0 5V 3A Buck Converter 8-40V Input 90% Efficiency TO-263 260kHz -40°C to +125°C

Dettagli:
Place of Origin: China
Marca: Texas Instruments
Certificazione: CE, GCF, ROHS
Model Number: LM2676SX-5.0
Termini di pagamento e spedizione:
Minimum Order Quantity: 1
Prezzo: negotiable
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 3-5 working days after received the payment
Payment Terms: T/T, Western Union,
Supply Ability: 1000pcs per month
Descrizione di prodotto dettagliata
Function: Step-Up, Step-Down Output Configuration: Positive or Negative
Topology: Buck, Boost Output Type: Adjustable
Number of Outputs: 1

LM2676SX-5.0



Features

• New product available:– LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1 MHz synchronous converter

• For faster time to market:– TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz power module

• Efficiency up to 94%

• Simple and easy to design with (using off-the-shelf external components)

• 150-mΩ DMOS output switch

• 3.3-V, 5-V, 12-V fixed output and adjustable (1.2 V to 37 V) versions

• 50-µA standby current when switched OFF

• ±2% maximum output tolerance over full line and load conditions

• Wide input voltage range: 8 V to 40 V

• 260-kHz fixed frequency internal oscillator

•–40 to 125°C operating junction temperature range



Applications

• Communication module

• Electricity meter

• Calling button operating panel

• Motor drives



Description

The LM2676 series of regulators are monolithic integrated circuits which provide all of the active functions for a step-down (buck) switching regulator capable of driving up to 3-A loads with excellent line and load regulation characteristics. High efficiency (> 90%) is obtained through the use of a low ON resistance DMOS power switch. The series consists of fixed output voltages of 3.3 V, 5 V, and 12 V and an adjustable output version.

The SIMPLE SWITCHER® power converter concept provides for a complete design using a minimum number of external components. A high fixed frequency oscillator (260 kHz) allows the use of physically smaller sized components. A family of standard inductors for use with the LM2676 are available from several manufacturers to greatly simplify the design process.

The LM2676 series also has built-in thermal shutdown, current limiting, and an ON and OFF control input that can power down the regulator to a low 50‑µA quiescent current standby condition. The output voltage is ensured to a ±2% tolerance. The clock frequency is controlled to within a ±11% tolerance.



Information

Category
Mfr
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT )
Digi-Reel
Part Status
Obsolete
Function
Step-Down
Output Configuration
Positive
Topology
Output Type
Number of Outputs
1
Voltage - Input (Min)
8V
Voltage - Input (Max)
40V
Voltage - Output (Min/Fixed)
Voltage - Output (Max)
-
Current - Output
Frequency - Switching
260kHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
Supplier Device Package
TO-263 (DDPAK-7)
Base Product Number



Drawing
