LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C

La CINA TOP Electronic Industry Co., Ltd. Certificazioni
La CINA TOP Electronic Industry Co., Ltd. Certificazioni
Prodotto eccellente, la buona qualità, il prezzo competitivo, servizio professionale, con 10 anni di cooperazione, ora diventiamo buoni amici.

—— Ronald-Da Boilvia

È molto felice da trovare la CIMA come nostro partner in Cina, qui possiamo ottenere il migliore prodotto e serice, mettono sempre il cliente al primo posto.

—— Carlos-Dall'Argentina

Molto sono soddisfatto con tutto il vostro servizio. È realmente un buon gruppo! con la vostra offerta della soluzione della un-fermata, aiutici a risparmiare molti tempo e soldi

—— Giancarlo-Dall'Italia

Sono ora online in chat

LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C

LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C
LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C

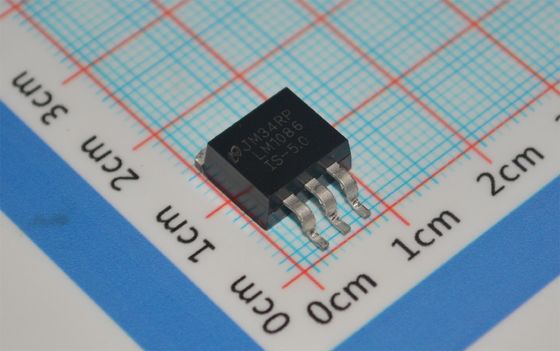

Grande immagine :  LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C

Dettagli:
Place of Origin: China
Marca: Texas Instruments
Certificazione: CE, GCF, ROHS
Model Number: LM1086IS-5.0
Termini di pagamento e spedizione:
Minimum Order Quantity: 1
Prezzo: negotiable
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 3-5 working days after received the payment
Payment Terms: T/T, Western Union,
Supply Ability: 1000pcs per month
Descrizione di prodotto dettagliata
Function: Step-Up, Step-Down Output Configuration: Positive or Negative
Topology: Buck, Boost Output Type: Adjustable
Number of Outputs: 1

LM1086IS-5.0



Features

• Available in Fixed 1.8-V, 2.5-V, 3.3-V, 5-V

• Available in Adjustable Version

• Current Limiting and Thermal Protection

• 2%Output Accuracy

• Output Current 1.5 A

• Line Regulation 0.015% (Typical)

• Load Regulation 0.1% (Typical)

• Maximum Input Voltage up to 29V

• Minimum Adjustable Output Voltage Down to 1.25V

• Stable with Ceramic Output Capacitor with ESR

• Temperature Range :-40°C to 125°C



Applications

• High-Efficiency Linear Regulators

• Battery Chargers

• Post Regulation for Switching Supplies

• Constant Current Regulators

• Microprocessor Supplies

• Audio Amplifiers Supplies

• Fire Alarm Control



Description

The LM1086 is a regulator with a maximum dropout of 1.5 V at 1.5 A of load current. The device has the same pin-out as TI's industry standard LM317.

Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1086. Fixed output voltage versions integrate the adjust resistors. Typically, no input capacitor is needed unless the device is situated more than 6 inches from the input filter capacitors. Output capacitor can be replaced with ceramic and appropriate ESR.

The LM1086 circuit includes a zener trimmed bandgap reference, current limiting, and thermal shutdown. Because the LM1086 regulator is floating and detects only the input-to-output differential voltage, supplies of several hundred volts can be regulated as long as the maximum input-to-output differential is not exceeded. Exceeding the maximum input-to-output deferential will result in short-circuiting the output. By connecting a fixed resistor between the adjustment pin and output, the LM1086 can be also used as a precision current regulator.



Information

Category
Mfr
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Output Type
Number of Regulators
1
Voltage - Input (Max)
25V
Voltage - Output (Min/Fixed)
5V
Voltage - Output (Max)
-
Voltage Dropout (Max)
1.5V @ 1.5A
Current - Output
Current - Quiescent (Iq)
5 mA
Current - Supply (Max)
10 mA
PSRR
68dB (120Hz)
Control Features
-
Protection Features
Over Current, Over Temperature, Short Circuit
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Supplier Device Package
TO-263 (DDPAK-3)
Base Product Number



Drawing

LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C 0

LM1086IS-5.0 5V 1.5A LDO Regulator ±1% Accuracy, 1V Dropout TO-263 Thermal Protection -40°C to +125°C 1

Our advantage :

  • High quality products --- our offers are 100% new and original, ROHS
  • Competitive price --- good Purchase channels with good price.
  • Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
  • Adequate inventory --- With the support of our strong Purchasing team,
  • Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.



be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
