LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C

LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C
LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C

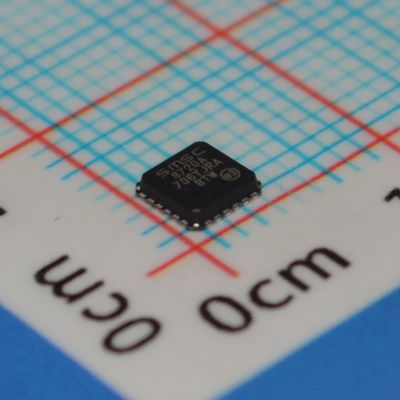

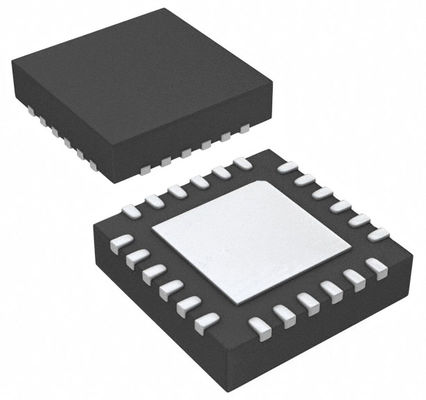

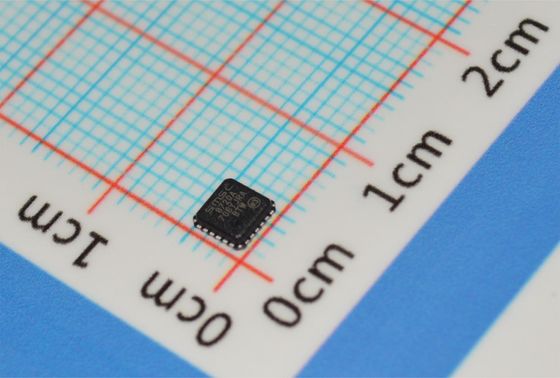

Grande immagine :  LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C

Dettagli:
Place of Origin: China
Marca: Microchip
Certificazione: CE, GCF, ROHS
Model Number: LAN8720A
Termini di pagamento e spedizione:
Minimum Order Quantity: 1
Prezzo: negotiable
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 3-5 working days after received the payment
Payment Terms: T/T, Western Union,
Supply Ability: 1000pcs per month
Descrizione di prodotto dettagliata
Function: Step-Up, Step-Down Output Configuration: Positive or Negative
Topology: Buck, Boost Output Type: Adjustable
Number of Outputs: 1

LAN8720A



Highlights

• Single-Chip Ethernet Physical Layer Transceiver (PHY)

• Comprehensive flexPWR® Technology

- Flexible Power Management Architecture

- LVCMOS Variable I/O voltage range: +1.6V to +3.6V

- Integrated 1.2V regulator

• HP Auto-MDIX support

• Miniature 24-pin QFN/SQFN lead-free RoHS compliant packages (4 x 4mm).



Target Applications

• Set-Top Boxes

• Networked Printers and Servers

• Test Instrumentation

• LAN on Motherboard

• Embedded Telecom Applications

• Video Record/Playback Systems

• Cable Modems/Routers

• DSL Modems/Routers

• Digital Video Recorders

• IP and Video Phones

• Wireless Access Points

• Digital Televisions

• Digital Media Adapters/Servers

• Gaming Consoles

• POE Applications (Refer to Application Note 17.18)



Key Benefits

• High-Performance 10/100 Ethernet Transceiver- Compliant with IEEE802.3/802.3u (Fast Ethernet)- Compliant with ISO 802-3/IEEE 802.3 (10BASE-T)- Loop-back modes- Auto-negotiation- Automatic polarity detection and correction- Link status change wake-up detection- Vendor specific register functions- Supports the reduced pin count RMII inter face

• Power and I/Os- Various low power modes- Integrated power-on reset circuit- Two status LED outputs- Latch-Up Performance Exceeds 150mA per EIA/JESD 78, Class II- May be used with a single 3.3V supply

• Additional Features- Ability to use a low cost 25Mhz crystal for reduced BOM

• Packaging- 24-pin QFN/SQFN (4x4 mm) Lead-Free RoHS Compliant package with RMII

• Environmental- Extended commercial temperature range (0°C to +85°C)- Industrial temperature range version avail able (-40°C to +85°C)



Information

Category
Manufacturer
Microchip Technology
Series
Packaging
Tray
Part Status
Active
Type
Transceiver
Protocol
MII, RMII
Number of Drivers/Receivers
2/2
Duplex
Full
Data Rate
100Mbps
Voltage - Supply
1.6V ~ 3.6V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
24-VFQFN Exposed Pad
Supplier Device Package
24-QFN-EP (4x4)
Base Product Number



Drawing

LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C 0
